Tapered Mold Skirts
Description
Tapered Mold Skirts (TMS)
Mold Skirts are an ideal solution to prevent parts from scattering randomly in the “drop zone”. Mold Skirts ensure your parts land on the conveyor or in the packing case – not on the floor – reducing waste and increasing profits.
Made of a durable polyester reinforced material with an internal polyester screen mesh, mold skirts are easily attached and removed from the molding machine using magnets and Velcro straps. Mold Skirts are reliably sturdy, yet gently enough to protect even the most delicate parts. The Mold Skirt’s unique construction and material composition enable it to repel oil and grease, and is abrasion, puncture and tear resistant. Mold Skirts are easily cleaned and there are no folds to trap dirt or parts.
Straight Mold Skirts (SMS) and Tapered Mold Skirts (TMS) have a bottom exit delivery and can move with the mold. The skirts are mounted with the supplied magnets and Velcro, and can be hung from platens or from the machine chassis.
| Model Number |
Width “A” |
Vertical Height “B” |
Mold Open Width “C” |
Tapered Exit “D” |
Tapered Exit “E” |
|---|---|---|---|---|---|
| TMS-20 | 8” (20cm) | 16” (41cm) | 8” (20cm) | Specify | Specify |
| TMS-25 | 10” (25cm) | 17” (43cm) | 10” (25cm) | Specify | Specify |
| TMS-30 | 12” (30cm) | 18” (46cm) | 12” (30cm) | Specify | Specify |
| TMS-35 | 14” (35cm) | 19” (48cm) | 14” (35cm) | Specify | Specify |
| TMS-40 | 16” (40cm) | 20” (51cm) | 16” (40cm) | Specify | Specify |
| TMS-45 | 18” (45cm) | 21” (53cm) | 18” (45cm) | Specify | Specify |
| TMS-50 | 20” (50cm) | 22” (56cm) | 20” (50cm) | Specify | Specify |
| TMS-55 | 22” (55cm) | 23” (58cm) | 22” (55cm) | Specify | Specify |
| TMS-60 | 24” (60cm) | 24” (60cm) | 24” (60cm) | Specify | Specify |
| Model Number |
Width “A” |
Vertical Height “B” |
Mold Open Width “C” |
Tapered Exit “D” |
Tapered Exit “E” |
|---|---|---|---|---|---|
| TMS-65 | 26” (65cm) | 25” (63cm) | 26” (65cm) | Specify | Specify |
| TMS-70 | 28” (70cm) | 26” (66cm) | 28” (70cm) | Specify | Specify |
| TMS-75 | 30” (75cm) | 27” (69cm) | 30” (75cm) | Specify | Specify |
| TMS-80 | 32” (80cm) | 27” (69cm) | 32” (75cm) | Specify | Specify |
| TMS-85 | 34” (85cm) | 29” (74cm) | 34” (85cm) | Specify | Specify |
| TMS-90 | 36” (90cm) | 30” (76cm) | 36” (90cm) | Specify | Specify |
| TMS-95 | 37.5” (95cm) | 31” (79cm) | 37.5” (95cm) | Specify | Specify |
| TMS-100 | 39” (100cm) | 32” (81cm) | 39” (100cm) | Specify | Specify |
| TMS-105 | 41” (105cm) | 33” (84cm) | 41” (105cm) | Specify | Specify |
Additional information
| Tapered Mold Skirts | TMS-100, TMS-105, TMS-20, TMS-25, TMS-30, TMS-35, TMS-40, TMS-45, TMS-50, TMS-55, TMS-60, TMS-65, TMS-70, TMS-75, TMS-80, TMS-85, TMS-90, TMS-95 |
|---|
Only logged in customers who have purchased this product may leave a review.
Related products
-
- Mold Skirt

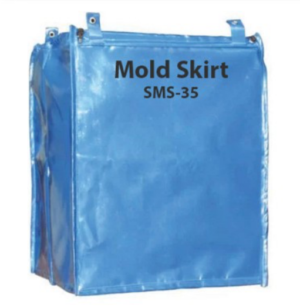

Straight Mold Skirts
